Nebula Management
Overview
As a WISP CPE, Leaf Plus is typically installed at locations such as homes or small business offices. We recommend managing it through NCC (Nebula Control Center).
This section shows you how to:
Register Leaf Plus on the NCC Portal

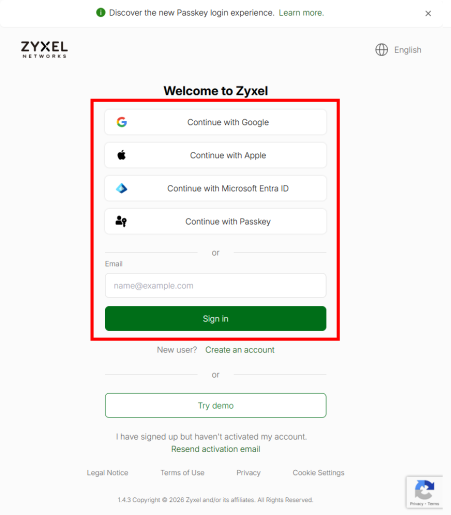

Go to the NCC portal. Enter your existing Zyxel Account credentials, or log in using a social account such as Google, Apple, Microsoft Entra ID, or Passkey. Then, click Sign in.
If this is your first time logging in to the NCC portal, see First-Time Login to the NCC Portal.
If this is not your first time logging in to the NCC portal, see Subsequent Login to the NCC Portal.
First-Time Login to the NCC Portal
1 Follow the Nebula setup wizard to create an organization and site.
• The setup wizard helps you create an organization and site, add Nebula Devices, upgrade your Nebula Device firmware, and set up WiFi networks quickly.
• The wizard appears automatically after you log in the first time or if there is no organization created under your account.
• The wizard also starts when you click Create organization from the Organization drop-down list in the title bar.

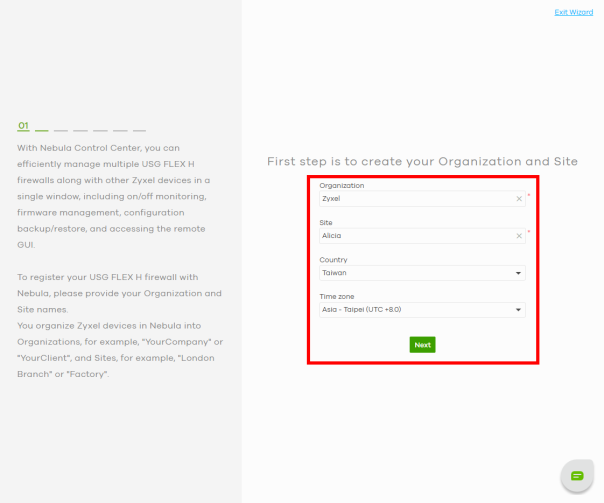

2 Enter the Organization and Site names. Select your Country and Time zone. Click Next.

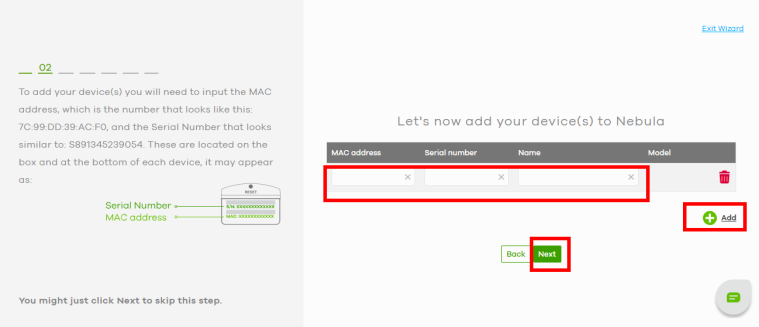

3 Enter the MAC address, Serial number, and Name of the Leaf Plus. Click the Add icon , then click Next.

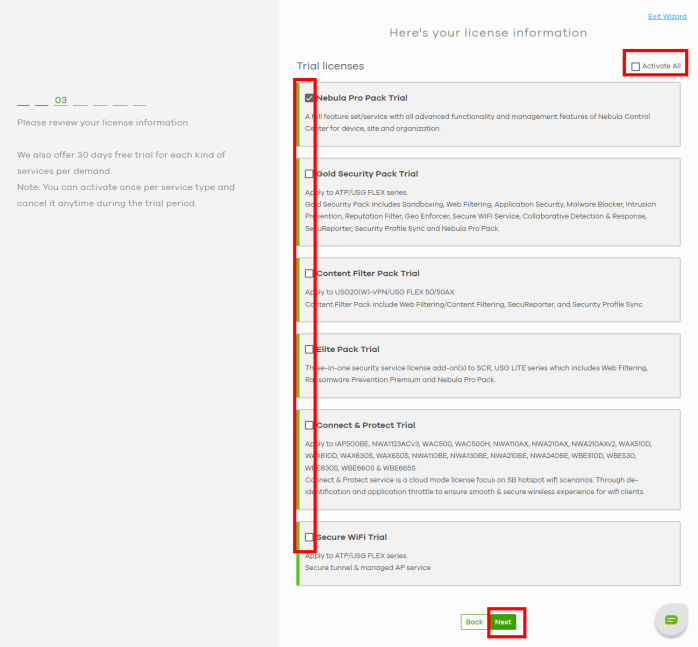

4 Select the trial license applicable to your Leaf Plus. You can also click Activate All to use all trial licenses. When finished, click Next.

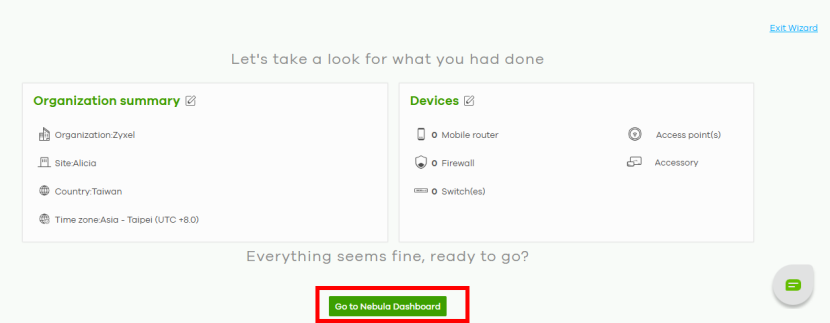

5 Check if the Organization summary and Devices information are correct. Once finished, click Go to Nebula Dashboard. Your Leaf Plus is now registered on the NCC portal.
Subsequent Login to the NCC Portal

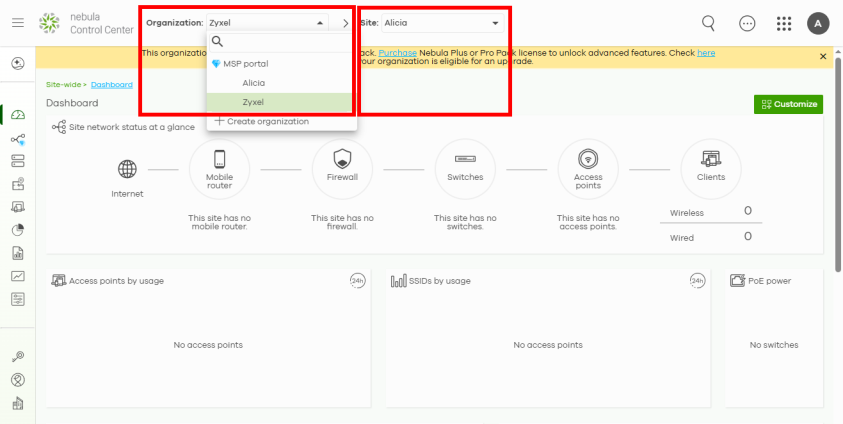

1 Select the Organization and Site where you want to register the Leaf Plus from the drop-down list at the top of the Dashboard screen.

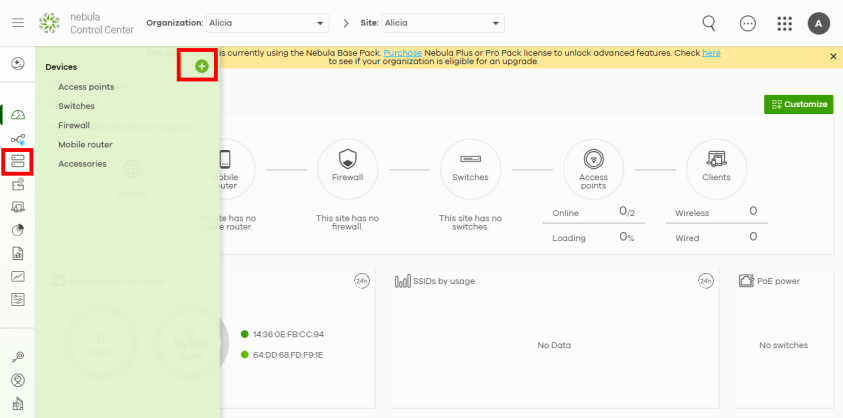

2 Click the Devices icon on the left-hand bar of the Dashboard screen. Click the Add icon to register the Leaf Plus.

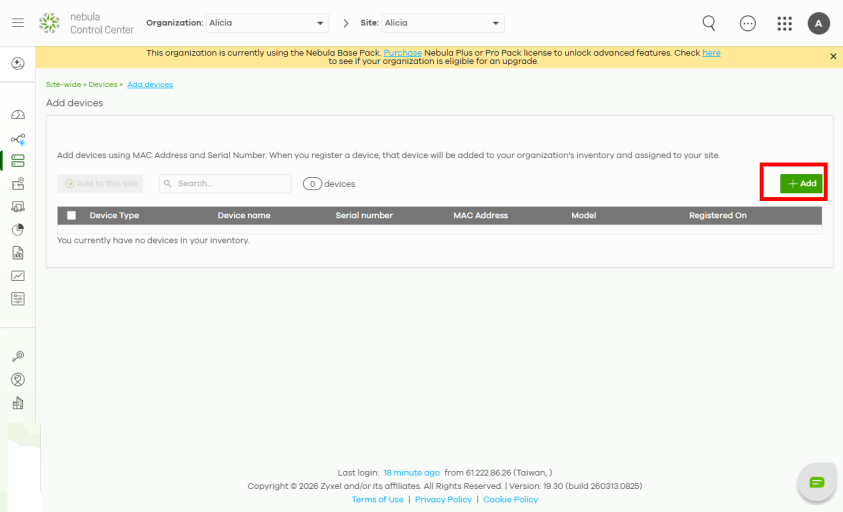

3 Click the +Add button on the right in the Add devices screen.

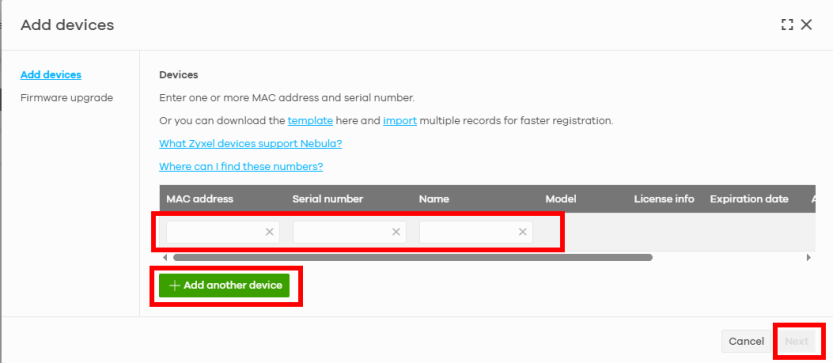

4 Enter the MAC address, Serial number, and Name of the Leaf Plus. The Serial number and MAC address can be found on the Dashboard screen or on the device back label on the Leaf Plus. Click the Add another device button to add more devices if needed. When finished, click Next.

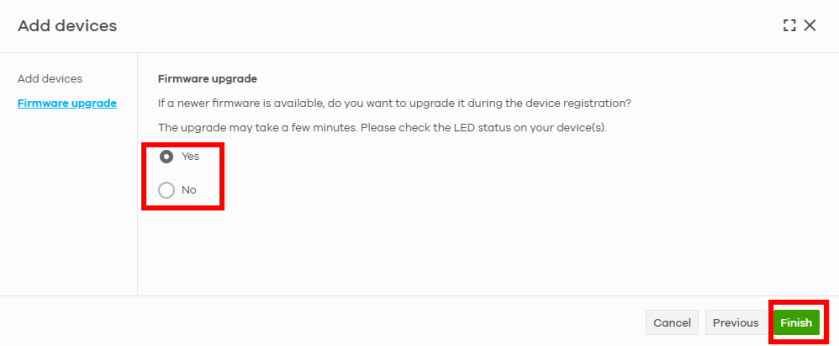

5 Select Yes to upgrade the Leaf Plus to the latest firmware. Click Finish to complete the registration.

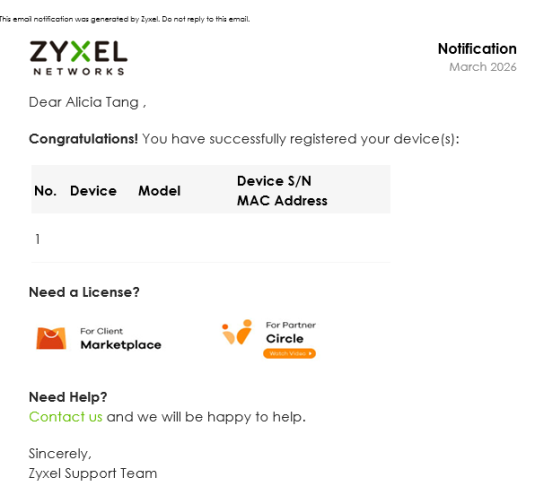

6 An email will be sent to inform you that the Leaf Plus has been successfully registered on the NCC portal.
Manage the NCC Dashboard
The following figure is an example of the Leaf Plus application when it’s managed by NCC.
NCC Managed Application
In this mode, you can manage and monitor the Leaf Plus through the Zyxel Nebula cloud-based network management system. This means you can manage devices remotely without the need of connecting to each device directly. It offers many features to better manage and monitor not just the Leaf Plus, but your network as a whole, including supported switches and gateways. Your network can also be managed through your smartphone using the Nebula Mobile app.

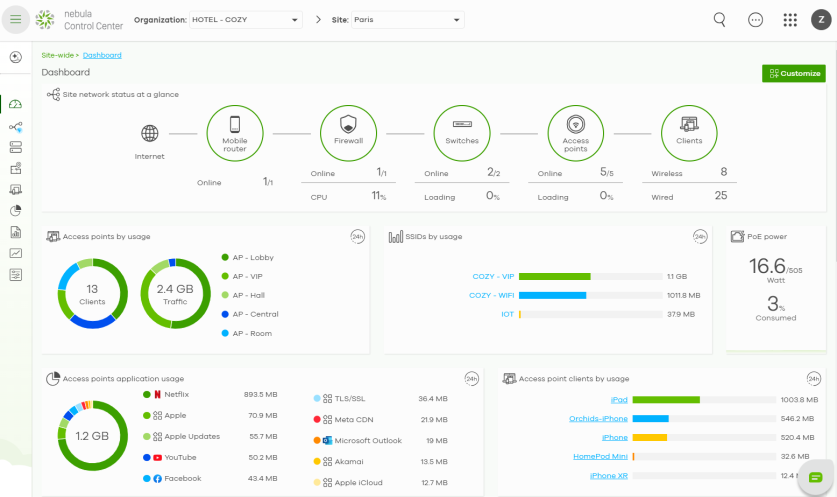

NCC Dashboard
Each Leaf Plus must belong to a site which must be in an organization. You can configure each Leaf Plus device on its own or configure a set of Leaf Plus devices together in a site. You can also monitor groups of sites in organizations.
Sites and Organizations
Organization
Organization
Organization
Organization
Site A
Site A
Site B
Site B
Device A-1
Device A-2
Device B-1
Device B-2

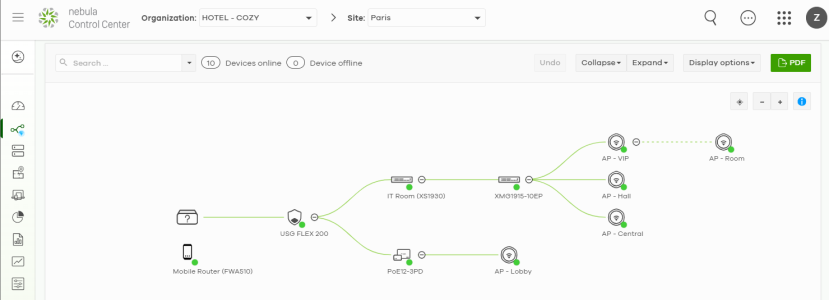

You can use the Topology in NCC which graphically presents your device and network statistics. It shows an overview of your network topology, as shown in the following figure. See the NCC User’s Guide for how to configure Nebula managed devices.
NCC Topology
*Make sure your network firewall allows TCP ports 443, 4335, and 6667 as well as UDP port 123 so the Leaf Plus can connect to and sync with the NCC.
If you cannot access the Leaf Plus from the NCC, you need to access the local GUI by connecting directly to the LAN port of the PoE injector of the Leaf Plus, and check if the Leaf Plus's VLAN setting or IP address has changed.
*To find the Leaf Plus's current LAN IP address, go to Site-wide > Devices > Access points screen or the gateway to which the AP is connected. Alternatively, disconnect the gateway or disable its DHCP server function and use the Leaf Plus's default static LAN IP address (192.168.1.2).
*Once you register your device with NCC, the local GUI login password will change to an NCC assigned password. To view or change the NCC assigned password, log in to NCC and go to Site-wide > Configure > Site settings > Local credentials.
