Hardware
See the Quick Start Guide for hardware installation and connections.
Grounding
Earth grounding helps protect against lightning and interference.
The power installation must be performed by qualified service personnel and should conform to the National Electrical Code.The Zyxel Device must be connected to earth ground to adequately ground the Zyxel Device and protect the operator from electrical hazards.
Qualified service personnel must confirm that the protective earthing terminal of the building is a valid terminal.
Before connecting the ground, ensure that a qualified service personnel has attached an appropriate ground lug to the ground cable.
1 Remove one of the ground screws from the Zyxel Device’s rear panel.
2 Secure a green/yellow ground cable (18 AWG or smaller) to the Zyxel Device’s rear panel using the ground screw.
3 Attach the other end of the cable to the ground, either to the same ground electrode as the pole you installed the Zyxel Device on or to the main grounding electrode of the building.
Follow your country's regulations and safety instructions to electrically ground the Zyxel Device properly. If you are uncertain that suitable grounding is available, contact the appropriate electrical inspection authority or an electrician.Warning! Connect the ground cable before you connect any other cables or wiring.

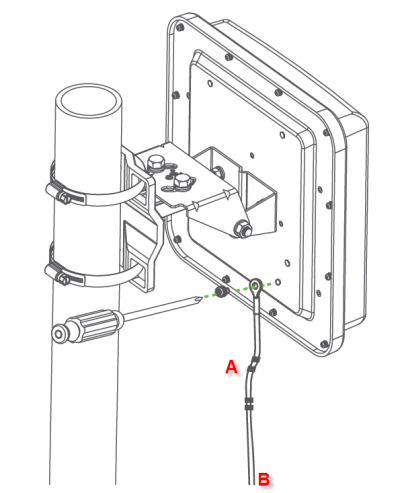

The figure below illustrates how the ground cable (A) is attached to the Zyxel Device and goes to the earth ground (B).
Grounding Example

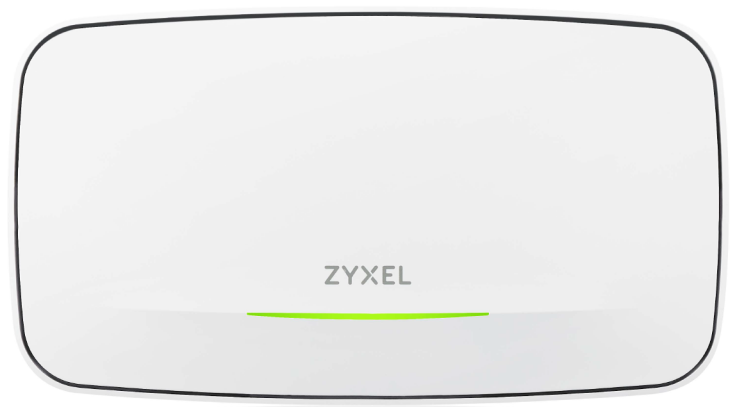

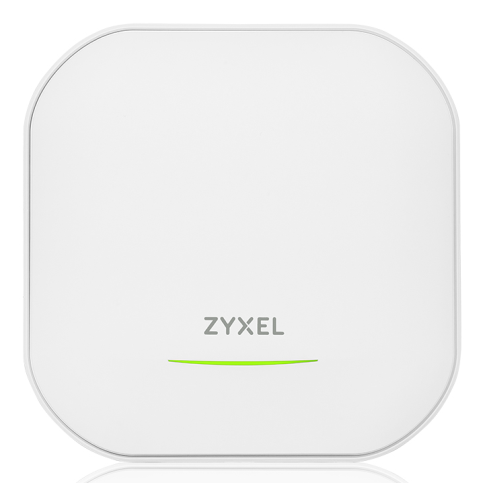

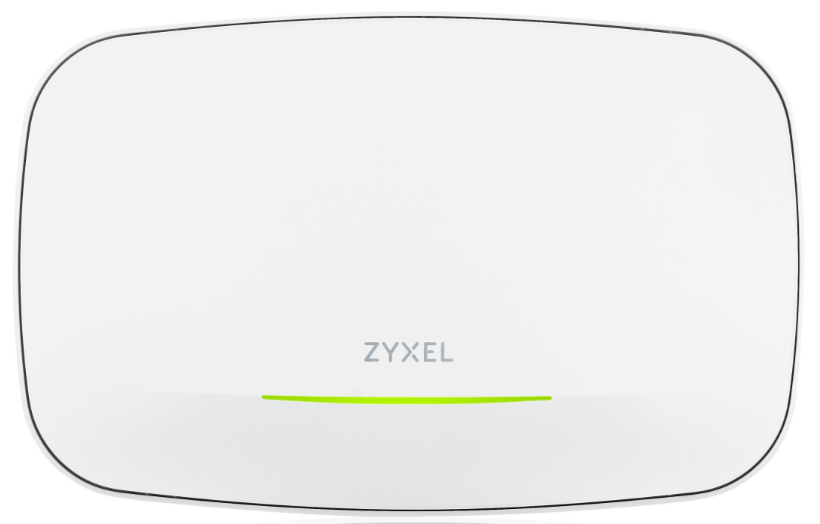

Zyxel Device Models With Single LEDs
The LEDs of some Zyxel Device models can be controlled by using the suppression feature such that the LEDs stay lit (ON) or OFF after the Zyxel Device is ready. Some Zyxel Device models also have Locator LED which allows you to see the actual location of the Zyxel Device among several devices in the network. See Zyxel Device Product Feature Comparison to check which models support these features. Refer to Overview for the LED Suppression and Locator menus in standalone mode.
Zyxel Device LED
802.11ax (WiFi 6) Dual-Radio PoE Access Point
802.11ax (WiFi 6) Dual-Radio Unified Access Point
• WAX510D
802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
802.11ax (WiFi 6) Wall-Plate Unified Access Point

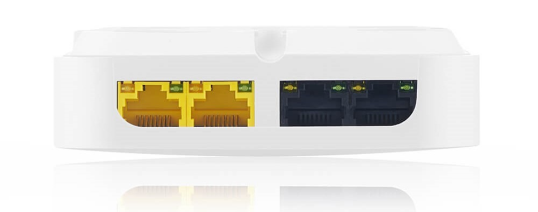

• WAX300H
802.11ax (WiFi 6E) Dual-Radio PoE Access Point
802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point
802.11ax (WiFi 6E) Tri-Radio Unified Pro Access Point
802.11be (WiFi 7) Dual- Radio Industrial PoE Access Point
• IAP500BE
802.11be (WiFi 7) Tri-Radio Unified Pro Access Point
• WBE660S
802.11be (WiFi 7) Triple-Radio Unified Pro Ruggedized Access Point
• WBE665S
802.11be (WiFi 7) Triple-Radio Unified Access Point
• WBE530
802.11be (WiFi 7) Dual-Radio Unified Pro Access Point
• WBE630S
802.11be (WiFi 7) Dual-Radio Unified Access Point
• WBE510D
802.11be (WiFi 7) Dual-Radio PoE Access Point
802.11be (WiFi 7) Triple-Radio PoE Access Point
• NWA240BE

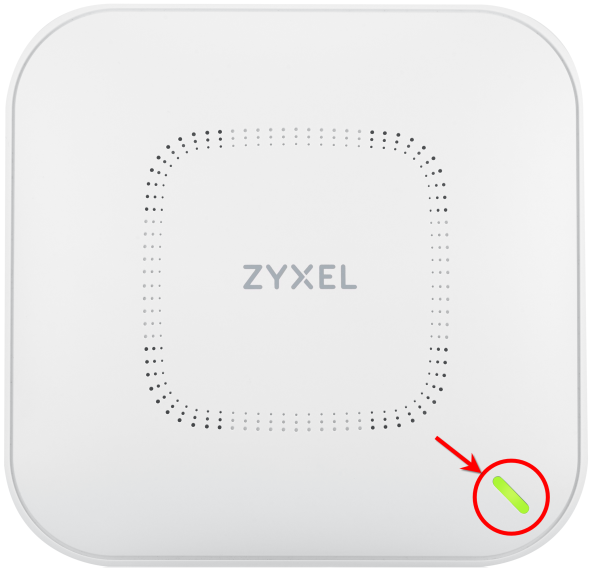

NWA110AX and NWA210AX
NWA110AX and NWA210AX LEDs
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
 | Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
 | Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
 | Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
 | Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
 | Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
 | White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
 | Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
 | Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
 | Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
 | Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
NWA210AXv2
NWA210AXv2 LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WAX510D
WAX510D LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WAX610D, WAX630S, and WAX650S
WAX610D, WAX630S, and WAX650S LEDs
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |

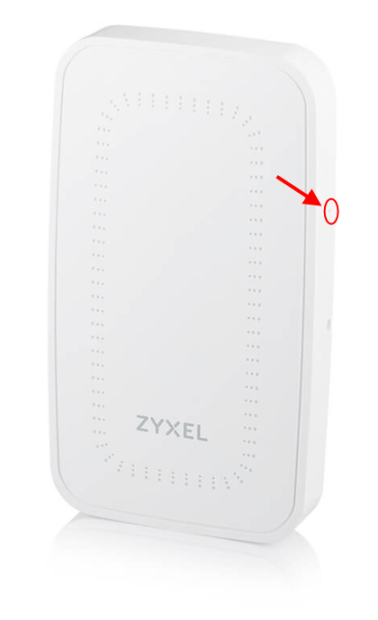

WAX300H
WAX300H LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
NWA220AX-6E
NWA220AX-6E LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WAX620D-6E
WAX620D-6E LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WAX640S-6E
WAX640S-6E LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |

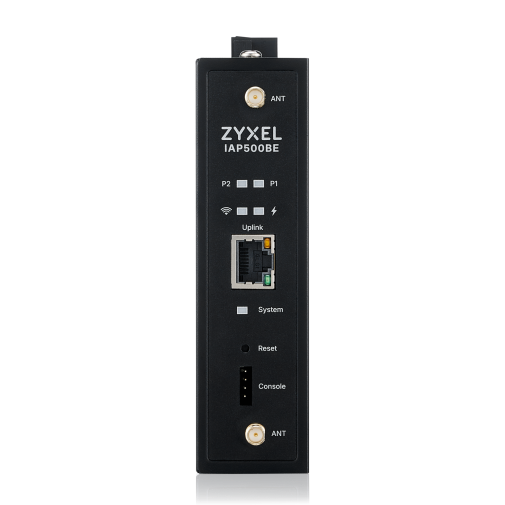

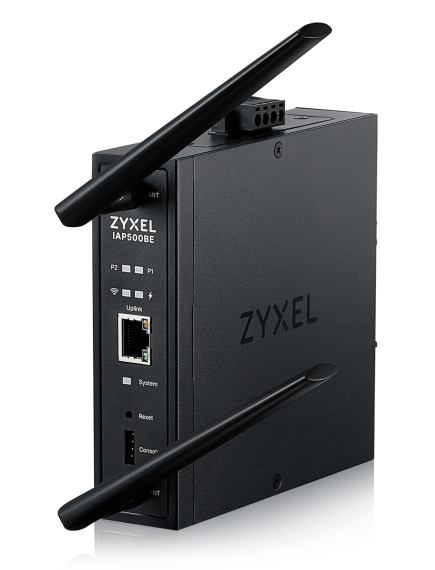

IAP500BE
IAP500BE LEDs
The System LED is located on the rear panel of the Zyxel Device. The Signal LED is on the Ethernet port of the Zyxel Device.
The following are the system LED indicator descriptions for the Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by the NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, and/or the Zyxel Device is configured to be managed by the NCC but is not yet registered with the NCC. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and WiFi clients are connected to the Zyxel Device. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected. |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
The following are the signal LED indicator descriptions for the Zyxel Device.
Color | status | description | |
|---|---|---|---|
Repeater Mode | |||
| Green | Steady On | The WiFi signal strength between the Zyxel Device and the mesh AP is good. The signal strength is greater than -67 dBm. |
| Amber | Steady On | The WiFi signal strength between the Zyxel Device and the mesh AP is fair. The signal strength is between -80 and -67 dBm. |
| Red | Steady On | The WiFi signal strength between the Zyxel Device and the mesh AP is weak. The signal strength is below -80 dBm. |
AP/Root Mode | |||
Off | When the Zyxel Device is in AP/Root mode, the LEDs are off. | ||

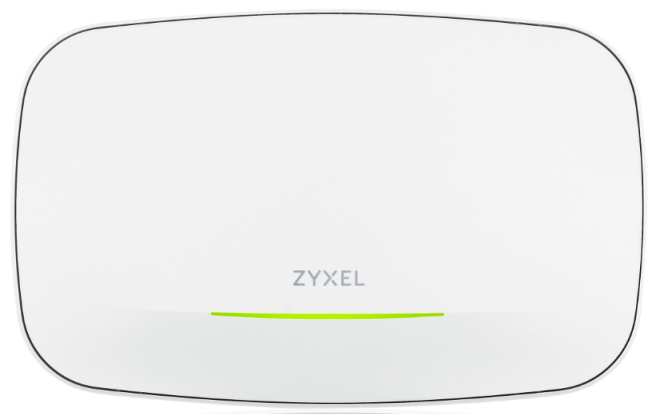

WBE660S
WBE660S LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WBE665S
WBE665S LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Green | Slow Blinking (On for 300 milliseconds, Off for 300 milliseconds) | The Zyxel Device is connected to and registered with NCC, but no WiFi clients are connected to the Zyxel Device. |
| Green | Steady On | The Zyxel Device is ready for use, or the Zyxel Device is connected to and registered with NCC and WiFi clients are connected to the Zyxel Device. |
| Amber | Steady On | The Zyxel Device is not connected to NCC, and WiFi clients are connected to the Zyxel Device. |
 | Amber | Slow Blinking (On for 300 milliseconds, Off for 300 milliseconds) | The Zyxel Device is not connected to NCC, and no WiFi clients are connected to the Zyxel Device. |
| Bright Blue | Steady On | The Zyxel Device completed the multiboot firmware process. |
| White | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails. This LED behavior appears only when the device is not using the factory default SSID. |
| Blue | Slow Blinking (On for 1 second, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to complete the multiboot firmware process. |
| Red | Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. |
| Red | Slow Blinking (On for 1 second, Off for 5 seconds) | The Zyxel Device is connected to but not registered with NCC. |
NWA130BE
NWA130BE LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WBE530
WBE530 LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WBE630S
WBE630S LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
WBE510D
WBE510D LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
NWA210BE and NWA110BE
NWA210BE and NWA110BE LEDs
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
NWA240BE
NWA240BE LED
The following are the LED descriptions for your Zyxel Device.
Color | status | description | |
|---|---|---|---|
| Amber | Blinks between amber and green alternately (300 milliseconds interval). | The Zyxel Device is booting up. |
Green | |||
| Amber | Blinks between amber and green alternately (1 second interval). | The Zyxel Device is discovering the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 3 times and then turns solid green for 3 seconds. | The Zyxel Device is discovering an AC, or is managed by NCC but fails to connect with NCC, and is reconnecting with the NCC. |
Green | |||
| Amber | Blinks between amber and green alternately 2 times and then turns solid green for 3 seconds. | The Zyxel Device is managed by an AC but the uplink is disconnected. |
Green | |||
| Green | Slow Blinking (On for 1 second, Off for 1 second) | The wireless module of the Zyxel Device is disabled or fails, the Zyxel Device is using default WiFi settings, or the Zyxel Device is configured to be managed by NCC but is not yet registered with the NCC. WiFi networks on the WAX650S, NWA220AX-6E and WAX620D-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE. |
| Green | Steady On | The Zyxel Device is ready for use, the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device in full power mode (see Dashboard). |
| Amber | Steady On | The Zyxel Device is ready for use in limited power mode (see Dashboard), the Zyxel Device’s wireless interface is activated, and/or WiFi clients are connected to the Zyxel Device. WiFi networks on the WAX650S, NWA220AX-6E, WAX620D-6E and WAX640S-6E are turned off automatically when it is connected to a device that supplies power using IEEE 802.3af PoE.Not all models support limited power mode. See Zyxel Device Product Feature Comparison for models that only support one PoE standard. |
| Bright Blue | Steady On | The Zyxel Device’s wireless interface is activated, but there are no WiFi clients connected when it is in full power mode (see Dashboard). |
| White | Slow Blinking (On for 100 ms per second) | Locator LED is on. It switches off automatically after the configured amount of time (1-60 min). Default duration is 10 minutes. The color of the white LED may have slight differences (for example, very light purple) on different models. |
| Blue | Slow Blinking (Blink for 1 time, Off for 1 second) | The Zyxel Device is performing a Channel Availability Check (CAC) with Dynamic Frequency Selection (DFS) to monitor a channel for radar signals. |
| Red | On | The Zyxel Device failed to boot up or is experiencing system failure. |
| Fast Blinking (On for 50 milliseconds, Off for 50 milliseconds) | The Zyxel Device is undergoing firmware upgrade. | |
| Slow Blinking (Blink for 3 times, Off for 3 seconds) | The uplink of the Zyxel Device is disconnected. | |
Ports
802.11ax (WiFi 6) Dual-Radio PoE Access Point
802.11ax (WiFi 6) Dual-Radio Unified Access Point
• WAX510D
802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
802.11ax (WiFi 6) Wall-Plate Unified Access Point
• WAX300H
802.11ax (WiFi 6E) Dual-Radio PoE Access Point
802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point
802.11ax (WiFi 6E) Tri-Radio Unified Pro Access Point
802.11be (WiFi 7) Dual- Radio Industrial PoE Access Point
• IAP500BE
802.11be (WiFi 7) Tri-Radio Unified Pro Access Point
• WBE660S
802.11be (WiFi 7) Triple-Radio Unified Pro Ruggedized Access Point
• WBE665S
802.11be (WiFi 7) Triple-Radio Unified Access Point
• WBE530
802.11be (WiFi 7) Dual-Radio Unified Pro Access Point
• WBE630S
802.11be (WiFi 7) Dual-Radio Unified Access Point
• WBE510D
802.11be (WiFi 7) Dual-Radio PoE Access Point
802.11be (WiFi 7) Triple-Radio PoE Access Point
• NWA240BE
NWA110AX and NWA210AX

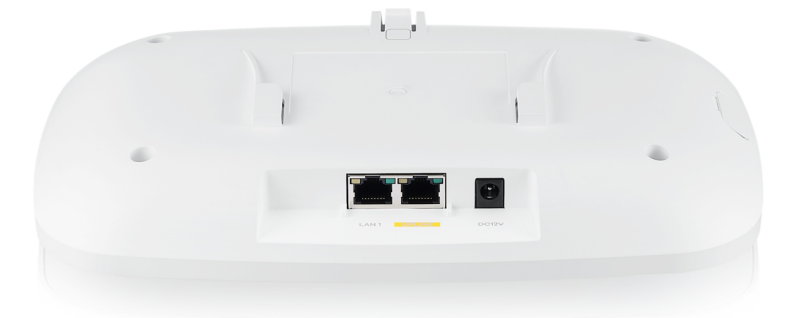

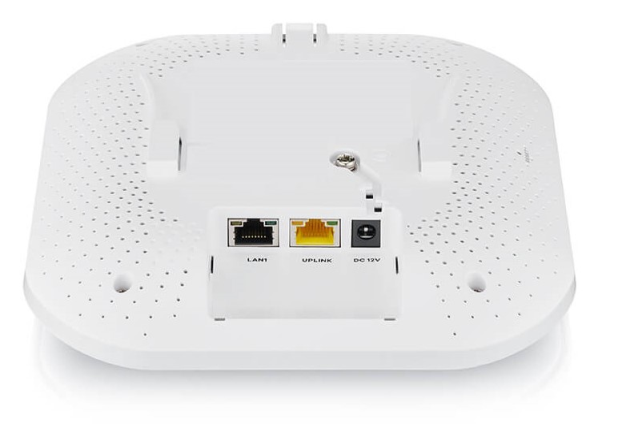

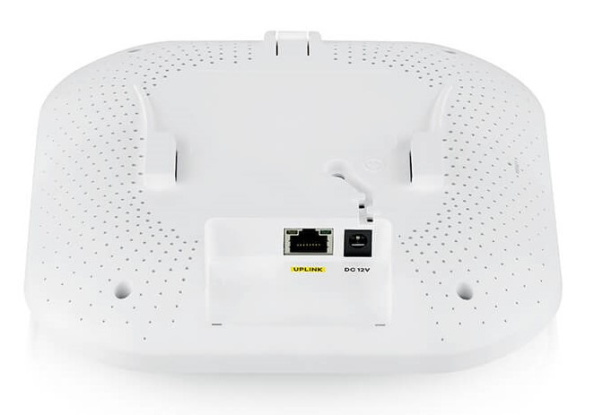

Place the Zyxel Device with the ports facing you and the bottom at the top.
NWA110AX
NWA210AX
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
NWA210AXv2
Place the Zyxel Device with the ports facing you and the bottom at the top.
NWA210AXv2
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WAX510D
Place the Zyxel Device with the ports facing you and the bottom at the top.
WAX510D
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WAX610D, WAX630S, and WAX650S

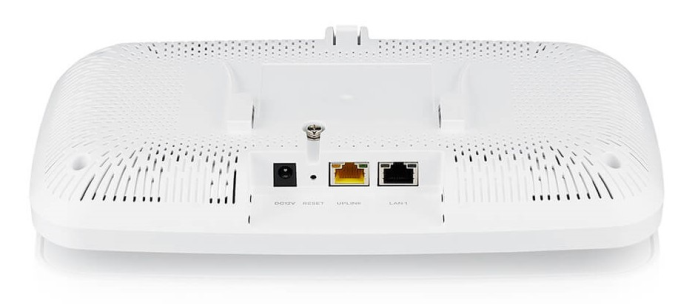

Place the Zyxel Device with the ports facing you and the bottom at the top.
WAX610D, WAX630S, and WAX650S
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WAX300H
Place the Zyxel Device with the ports facing you and the bottom at the top.
WAX300H Ports
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
NWA220AX-6E
Place the Zyxel Device with the ports facing you and the bottom at the top.
NWA220AX-6E
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WAX620D-6E
Place the Zyxel Device with the ports facing you and the bottom at the top.
WAX620D-6E
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WAX640S-6E
Place the Zyxel Device with the ports facing you and the bottom at the top.
WAX640S-6E
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
IAP500BE
Place the Zyxel Device with the ports and antennas facing you.
IAP500BE
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
POWER | Connect the power adapter and press the ON/OFF button to start the device. IAP500BE supports DC power input via a terminal block rated at 12–48 V DC, 0.5 A. |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
WBE660S
Place the Zyxel Device with the ports facing you and the bottom at the top.
WBE660S
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |

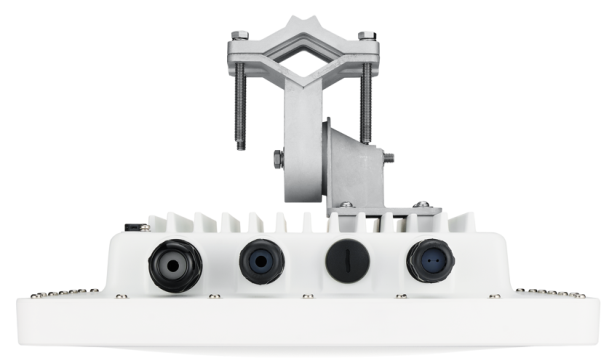

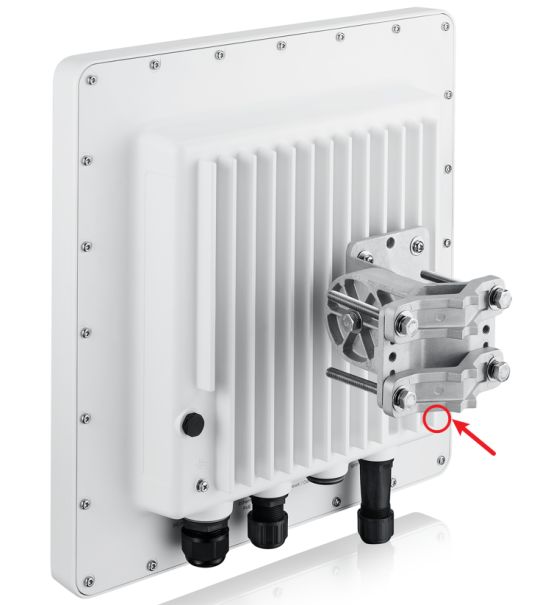

WBE665S

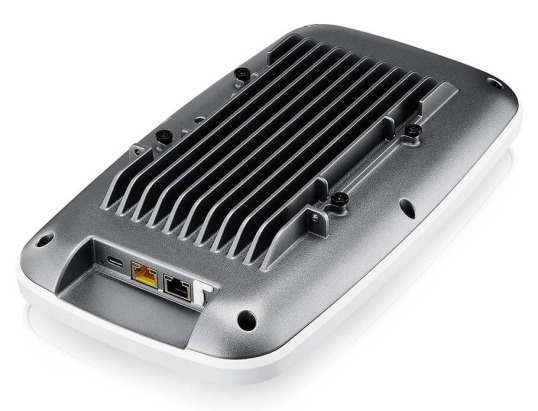

Place the Zyxel Device with the ports facing you and the bottom at the top.
WBE665S

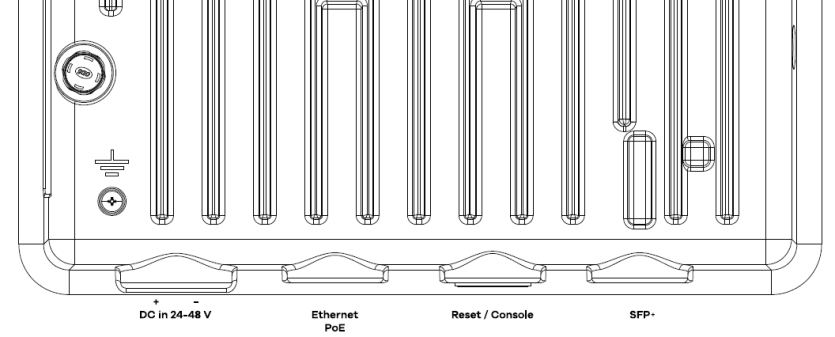

WBE665S Ports Description
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
DC in 24-48 V | Use a compatible DC power adapter to power the Zyxel Device. |
Ethernet PoE | Connect the Ethernet PoE port to provide power and network access to the Zyxel Device. |
Reset / Console | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
SFP+ | Insert a compatible SFP transceiver to the SFP port and connect a fiber optic or Ethernet cable for an (up to) 10 Gbps Internet connection. |
NWA130BE
Place the Zyxel Device with the ports facing you and the bottom at the top.
NWA130BE
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WBE530
Place the Zyxel Device with the ports facing you and the bottom at the top.
WBE530
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WBE630S
Place the Zyxel Device with the ports facing you and the bottom at the top.
WBE630S
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
WBE510D
Place the Zyxel Device with the ports facing you and the bottom at the top.
WBE510D
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
NWA210BE and NWA110BE
Place the Zyxel Device with the ports facing you and the bottom at the top.
NWA210BE
NWA110BE
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
LAN | Connect computers or other Ethernet devices to Ethernet ports for Internet access. |
CONSOLE | You can use the console port to manage the Zyxel Device using CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI. When configuring using the console port, you need a computer equipped with communications software configured to the following parameters: • Speed 115200 bps • Data Bits 8 • Parity None • Stop Bit 1 • Flow Control Off |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter and press the ON/OFF button to start the Zyxel Device |
NWA240BE

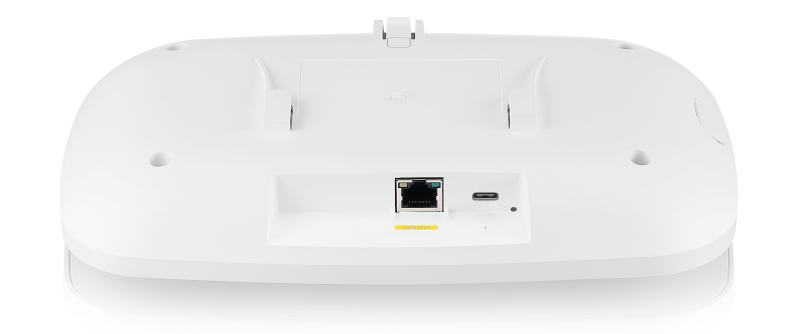

Place the Zyxel Device with the ports facing you and the bottom at the top.

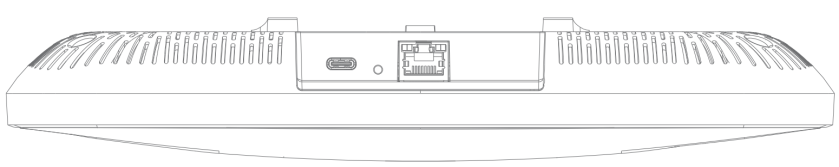

NWA240BE
The following are the items on the ports panels for your Zyxel Device.
label | description |
|---|---|
UPLINK | Connect the port to a router, a switch, or another access point (AP) to connect the Zyxel Device to the backbone of your network. |
RESET | Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults. |
POWER | Connect the power adapter to start the Zyxel Device. |
Ways to Reset a Zyxel Device without a Reset Button
You can use the following ways to reset a Zyxel Device without a reset button to its factory default settings.
ZON Utility
1 Open the ZON Utility and click the Clear and rescan icon to scan for the Zyxel Device you want to reset.
2 Select the device and click the Reset Configuration to Default icon.

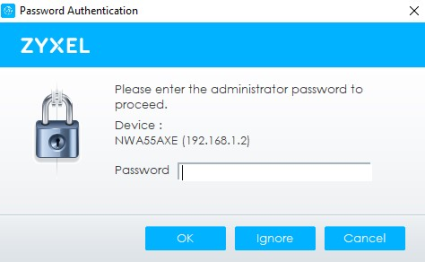

3 Enter the administrator password in the Password field on the pop-up screen and click OK to start the reset.
Web Configurator of the Zyxel Device Gateway
You can use this method if the Zyxel Device is connected to a Zyxel Switch with a Neighbor Reset function.

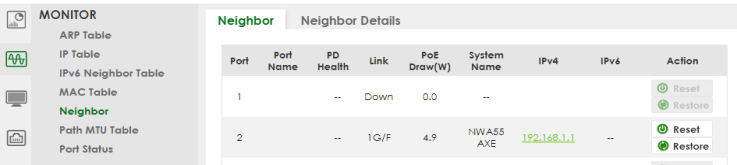

1 Log into the Zyxel switch’s Web Configurator. Go to Monitor > Neighbor, and then click the Restore button to reset the Zyxel Device to its factory default settings.

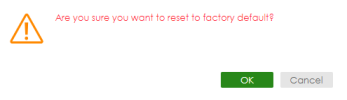

2 A pop-up window asks you to confirm that you want to reset the Zyxel Device to factory default. Click OK to proceed with reset. A count down starts.
Nebula Control Center
If your Zyxel Device is registered with NCC, you can unregister it to reset it to its factory default settings.

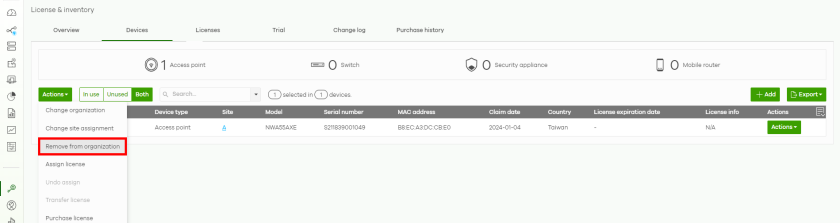

1 Go to Organization-wide > License & inventory > Devices tab in the NCC portal.

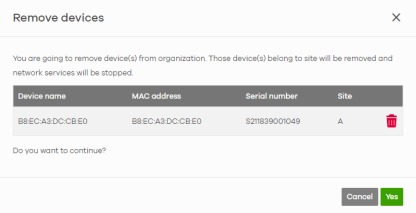

2 Select the Zyxel Device you want to remove, then click Actions > Remove from organization.
3 Click the Yes button to confirm.
PoE
Power Over Ethernet (PoE) is a technology that allows Ethernet cables to supply power and transmit data simultaneously through a single Ethernet cable. You can use PoE when the Zyxel Device is hard to reach a power outlet or to simplify cabling.

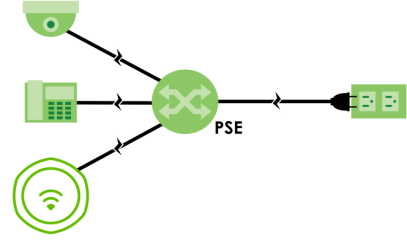

The following example shows a Power Sourcing Equipment (PSE) supplying power and transmitting data to the Zyxel Device, along with other Powered Devices (PDs) such as an IP camera and an IP telephone.
PoE Example Application - PSE

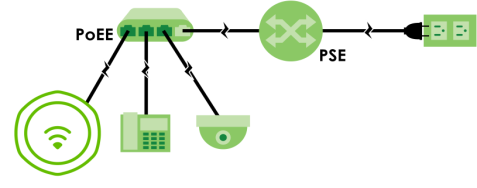

The following example shows a PSE using a PoE Extender (PoEE) to supply power and transmit data to the Zyxel Device, along with other PDs such as an IP camera and an IP telephone.
PoE Example Application - PSE with PoE Extender

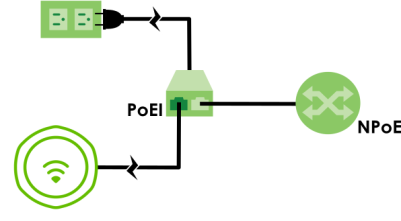

The following example shows the PoE Injector (PoEI) delivering power from the power outlet and transmitting data from the non-PoE (NPoE) device to the Zyxel Device.
PoE Example Application - PoE Injector
To view the Zyxel Device’s supported PoE standards, see Zyxel Device Product Feature Comparison. Use Ethernet cables that correspond to the PoE standard your Zyxel Device supports (see PoE Standards).
PoE standards are:
• IEEE 802.3af Power over Ethernet (PoE)
• IEEE 802.3at Power over Ethernet + (PoE+)
• IEEE 802.3bt Power over Ethernet ++ (PoE++)
The following table describes the PoE standards.
PoE FEATURES | PoE | PoE+ | PoE++ |
|---|---|---|---|
IEEE Standard | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt |
PoE Type | Type 1 | Type 2 | Type 3 |
PSE Port Power | |||
IEEE Power Classification | Class 0, 1, 2, 3 | Class 4 | Class 5, 6 |
Maximum Power Per Port | 15.4 W | 30 W | 60 W |
Port Voltage Range | 44 – 57 V | 50 – 57 V | 50 – 57 V |
Cables | |||
Twisted Pairs Used | 2-pair | 2-pair | 4-pair |
Supported Cables | Cat3 or better | Cat5 or better | Cat5 or better |
DC Power Connection
The Zyxel Device uses a single D-sub series terminal block plug with two pins. Use two wires to connect to the terminal block: one for the positive terminal and one for the negative terminal.
The current rating of the power wires must be greater than 16 AWG. The power supply to which the Zyxel Device connects must have a built-in circuit breaker or switch to toggle the power. When installing the Zyxel Device power wire, push the wire firmly into the terminal as deep as possible and make sure that no exposed (bare) wire can be seen or touched. Exposed power wire is dangerous. Use extreme care when connecting a DC power source to the Zyxel Device.
WARNING! Working with high-voltage DC power is dangerous. To ensure safety of equipment and regulatory compliance, the DC power connection must be performed by a certified technician.
To connect a power supply:
1 Use a screwdriver to loosen the captive screws on the D-sub's terminal block.
2 Connect one end of a power wire to the Zyxel Device’s 48 V (return) pin and tighten the captive screw.
3 Connect the other end of the power wire to the positive terminal on the DC power supply.
4 Connect one end of a power wire to the Zyxel Device’s –48 V (input) pin and tighten the captive screw.
5 Connect the other end of the power wire to the negative terminal on the power supply.
6 Insert the D-sub terminal block’s male connector plug into the Zyxel Device’s DC in 24–48 V port and tighten the two captive screws.
SFP+ Slot
This is the slot for SFP+ (Small Form-Factor Pluggable) transceivers. A transceiver is a single unit that houses a transmitter and a receiver. The Zyxel Device does not come with a transceiver. You must use a transceiver that comply with the Small Form-factor Pluggable (SFP+) Transceiver MultiSource Agreement (MSA). See the SFF committee’s specifications.
You can change a transceiver while the Zyxel Device is operating. You can use a different transceiver to connect to devices with different types of fiber optic or even copper cable connectors.
WARNING! To avoid possible eye injury, do not look into an operating fiber optic module’s connectors.
HANDLING! All transceivers are static sensitive. To prevent damage from electrostatic discharge (ESD), it is recommended you attach an ESD preventive wrist strap to your wrist and to a bare metal surface when you install or remove a transceiver.
STORAGE! All modules are dust sensitive. When not in use, always keep the dust plug on. Avoid getting dust and other contaminant into the optical bores, as the optics do not work correctly when obstructed with dust.
HANDLING! All transceivers are static sensitive. To prevent damage from electrostatic discharge (ESD), it is recommended you attach an ESD preventive wrist strap to your wrist and to a bare metal surface when you install or remove a transceiver.
STORAGE! All modules are dust sensitive. When not in use, always keep the dust plug on. Avoid getting dust and other contaminant into the optical bores, as the optics do not work correctly when obstructed with dust.
Transceiver Installation
Use the following steps to install a transceiver.
1 Attach an ESD preventive wrist strap to your wrist and to a bare metal surface.
2 Align the transceiver in front of the slot opening.
3 Make sure the latch is in the lock position (latch styles vary), then insert the transceiver into the slot with the exposed section of PCB board facing down.
4 Press the transceiver firmly until it clicks into place.
5 The Zyxel Device automatically detects the installed transceiver.
6 Remove the dust plugs from the transceiver and cables (dust plug styles vary).
7 Identify the signal transmission direction of the fiber optic cables and the transceiver. Insert the fiber optic cable into the transceiver.
Latch in the Lock Position
Transceiver Installation Example
Connecting the Fiber Optic Cables
Transceiver Removal
Use the following steps to remove an SFP transceiver.
1 Attach an ESD preventive wrist strap to your wrist and to a bare metal surface on the chassis.
2 Remove the fiber optic cables from the transceiver.
3 Pull out the latch and down to unlock the transceiver (latch styles vary).
Make sure the transceiver’s latch is pushed all the way down, so the transceiver can be pulled out successfully.4 Pull the latch, or use your thumb and index finger to grasp the tabs on both sides of the transceiver, and carefully slide it out of the slot.
Do NOT pull the transceiver out by force. You could damage it. If the transceiver will not slide out, grasp the tabs on both sides of the transceiver with a slight up or down motion and carefully slide it out of the slot. If unsuccessful, contact Zyxel Support to prevent damage to your Zyxel Device and transceiver.5 Insert the dust plug into the ports on the transceiver and the cables.
Removing the Fiber Optic Cables
Opening the Transceiver’s Latch Example
Transceiver Removal Example
